Image of the Month



We have lots of people in the EMU who are acquiring lovely images and great data. If you have an image that you think is good, please submit it to the EMU image of the month competition*. The prize is a $50 gift voucher from the UNSW book store. All submissions are voted on by EMU staff. Your winning entry will be displayed in the EMU and put onto our website.

To enter email your image to us in .tif format with:

  • a brief description (2 - 3 sentences)
  • your full name and your school/department
  • your supervisor's name
  • the microscope (and technique) that you used

*Only one submission per person per month.



March 2017

Angela Lay, School of Biological, Earth and Environmental Sciences

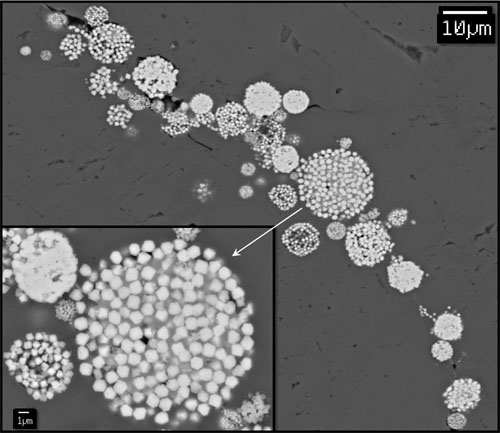

This image shows an aggregate of framboidal pyrites formed under anoxic environment by biogenic process i.e. pyritic fossilisation of bacterial colonies within dolomitic limestone. Each of the framboid is made up ~1µm size individual euhedral to subhedral pyrite grains and some these individual pyrite is recrystallised to form massive framboid.

Image by:

Angela Lay, School of Biological, Earth and Environmental Sciences

Microscope/Technique: JEOL JXA-8500F Field Emission SEM/EPMA Hyperprobe

Supervisor: Dr. Ian Graham

January/February 2017

Tian Zhang, School of Photovoltaic and Renewable Energy Engineering (SPREE)

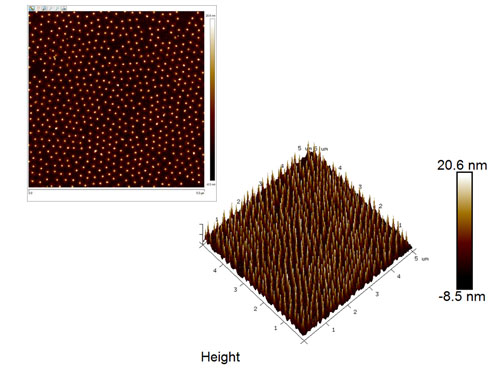

This AFM image shows the morphology of SiNx Nano-pillars which were formed by RIE. Crystalline silicon as substrate, SiNx was deposited on it to work as anti-reflective coating layer for this solar cell. The Nano-pillar structure would trap more solar energy into the cell thus to increase energy conversion efficiency.

Image by: Tian ZhangSchool of Photovoltaic and Renewable Energy Engineering (SPREE)

Microscope/Technique: Bruker ICON SPM

Supervisor: Dr. Bram Hoex

November/December 2016

Jingjing Duan, School of Chemistry

This image is the top view of multi-dimensional nickel sulfide array in situ-grown on nickel foam. The preliminary structure of this nickel sulfide array is the two-dimensional ultra-thin sheets, which constructs to one dimensional wire-like morphology, and further to the three-dimensional array.

Image by: Jingjing Duan, School of Chemistry

Microscope/Technique: FEI NanoSEM 450

Supervisor: A/Prof Chuan Zhao

October 2016

Jon Berengut, Single Molecule Science, School of Medical Sciences

This micrograph depicts DNA origami nanostructures that have been made by designing and synthesising hundreds of single strands and allowing them to self-assemble into precise 3D structures. These blocks have four different-sized cavities for kinetic experiments and an asymmetric hole running through to establish orientation. Inset: A rendering of the design in which sections of double stranded DNA are depicted as cylinders.

Image by:  Jon Berengut, Single Molecule Science, School of Medical Sciences

Instrument used: FEI Tecnai G2 20 TEM

Supervisor: Lawrence Lee



September 2016

Shinyoung NohSchool of Photovoltaic and Renewable Energy Engineering (SPREE)



This image is cross-section view of Ag evaporated on Reactive Ion Etched(RIE) Silica particles on Si wafer. Originally, particles were spherical and closely-packed. RIE deformed particles into smaller ellipsoidal shape with giving distance between the particles. So that evaporated Ag film is patterned.

Image by: Shinyoung NohSchool of Photovoltaic and Renewable Energy Engineering (SPREE)

Microscope/Technique: FEI NanoSEM 450

Supervisor: Dr. Xiaojing Hao



August 2016

Yuan (Helena) Wang, School of Chemical Engineering

The 3D drape porous NiO materials with high specific surface area were fabricated by templating strategy. It is designed as an effective thermal conductive catalyst for CO2 reduction. Comparing to nano particles catalysts, 3D drape porous NiO exhibits extremely high thermal stability, catalytic activity and methane selectivity.

Image by: Yuan (Helena) Wang, School of Chemical Engineering

Microscope/Technique: FEI NanoSEM 230

Supervisors: Scientia Professor Rose Amal and Dr. Hamid Arandiyan

July 2016

Sajjad S. Mofarah, School of Materials Science and Engineering

The image shows hexagonal cerium oxide tubes grown on FTO substrate by the method of anodic electrodeposition. The images taken at very early stages of growing reveal that cerium oxide starts growing in rod shape. However applying potential for a longer time makes them to hollow which finally turns into tube. The tubes with average height of 30 -40 micron is expected to show significant photocatalytic activity.

Image by: Sajjad S. Mofarah, School of Materials Science and Engineering

Microscope/Technique: FEI NanoSEM 450

Supervisor: Prof. C. Sorrell

June 2016

Lucy Gloag, School of Chemistry



The low resolution TEM image shows a superlattice of interlocked Ru hourglass-shaped nanoparticles. The nanoparticles self-assemble on the TEM grid to form an alternating pattern of hexagon and hourglass shapes. The hexagonal base of the hourglass is seen when the nanoparticles are oriented ‘upwards’ and the hourglass shape is seen when the nanoparticles are oriented ’side-on’ to the electron beam.

Image by: Lucy Gloag, School of Chemistry

Microscope/Technique: Phillips cm200 TEM

April/May 2016

Rob RussellSchool of Biological and Biomolecular Sciences

Cellulose fibres are excreted from some bacterial cells and can form a “woven mat” of cellulose with high porosity.

A piece of cellulose pellicle was prepared for SEM using the critical point dryer at the EMU, many thanks to Sigrid Fraser for guidance.

The dried cellulose was imaged using the SEM 230 following platinum coating. The image shows a single Gluconacetobacter xylinus cell whose structure has been maintained by the drying process.

Image by: Rob Russell, School of Biological and Biomolecular Sciences

Instrument used: FEI NanoSEM 230



March 2016

Derrick Lau, School of Medical Sciences

The HIV-1 capsid is a protein cage that protects the fragile genome. A mutant capsid protein has been shown to make uniform spheres (Pornillos et al. 2010). The plasmid were supplied to us to purify. Those proteins do indeed self-assembled into very nice spherical balls!

Methods: Negative staining with Uranyl acetate (2% w/v in water) on formvar coated carbon grids provided by the EMU.

Image by: Derrick Lau, PhD student, Single Molecule Science, School of Medical Sciences

Instrument used: FEI Tecnai G2 20 TEM





February 2016

Simon Hager, Electron Microscope Unit

This x‐ray map shows the primary sulphide mineralisation in the ore body from the Sunny Corner silver mine which is located approximately 40km to the east of Bathurst. The colours of the individual minerals are;
Purple: pyrite (FeS2),
Green: quartz (SiO2),
Light Blue: galena (PbS),
Dark Blue: sphalerite (ZnS) and
Pink: freibergite (Ag6Cu4Fe2Sb4S13).

Image by: Dr. Simon Hager, Technical Officer, Electron Microscope Unit

Instrument used: FEI Quanta ESEM




January 2016

Leeora Gubbay-Nemes, School of Biological Earth & Environmental Sciences

This unique animal print pattern is captured in a volcanic rock from Brothers Submarine Volcano (NZ) and is known as a "Ti-magnetite Symplectite".

This would have formed during eruption of the volcano at a depth of ~2.5km beneath the seafloor. As magma ascended during the eruption a decrease of pressure and loss water content would have caused the breakdown of hydrous amphibole to a more stable mineral phase of Ti-magnetite, forming this animal-like pattern.

Image by: Leeora Gubbay-Nemes, PhD Student, School of Biological Earth & Environmental Sciences, UNSW

Instrument used: EPMA JEOL-8500

December 2015

Susanne ErdmannSchool of Biotechnology and Biomolecular Sciences (BABS)

December 2015

SE1 is a virus isolated from a hypersaline lake in Antarctica (Deep Lake). It does infect an haloarchaeal strain isolated from the same lake and I am currently getting the genome assembled.

Image by: Susanne ErdmannSchool of Biotechnology and Biomolecular Sciences (BABS)

Microscope/Technique: J1400 TEM, negative staining



November 2015

Hao Wu, School of Chemical Engineering

Hao Wu November 2015

Figure 1 | SEM image of the nanostructures obtained during the growth of ZnO on FTO.

According to the SEM micrograph images the diameter of the ZnO nanorod can be estimated at about 60nm. The entire surface of the FTO glass has been thoroughly coated with ZnO nanorod. Addtionally, the width and overall size of the ZnO nanorod seems consistent and not much fluctuation in the dimensions furthermore crediting the success of the chemical bath deposition method to fabricate ZnO nanorod.

My name is Hao Wu (5001090). We are a leading (photo(electro))catalysis research laboratory headed by Professor Rose Amal within the School of Chemical Engineering at the University of New South Wales. The PARTCAT Laboratory evolved from the Centre for Particle and Catalyst Technologies and was part of the ARC Centre of Excellence for Functional Nanomaterials from 2003 until the end of 2013.

Finally, I would like to thank and express my gratitude for Yin Yao and the EMU centre for your guidance during the progress of SEM training.

October 2015

Lydia Sandiford, School of Chemistry

This is an image of iron/iron oxide core shell nanocrystals for use as MRI contrast agents.

Image by: Lydia Sandiford, School of Chemistry

Microscope/Technique: FEI Tecnai G2 20 TEM

September 2015

Ted Chang, School of Chemical Engineering

Polymeric Nanoparticle used for the delivery of cancer therapeutics to cancers cells.

Image by: Ted Chang, School of Chemical Engineering

Microscope/Technique: JEOL 1400, osmium tetroxide vapour staining



August 2015

Raheleh Pardehkhorram, School of Chemistry





TEM image of gold nanorods which are employed for pathogen detection.

Image by: Raheleh Pardehkhorram, School of Chemistry

Microscope/Technique:FEI Tecnai G2 20 TEM



July 2015

Amanda Wang, Materials Science and Engineering

Where the wild things are - TEM specimens of Ni-Cr plasma sprayed splats on alumina, exhibiting extensive porosity, delamination, and multiple layers of interfacial material.



Image by: Amanda Wang, Materials Science and Engineering

Microscope/Technique: Zeiss Auriga FIB SEM (TEM specimen preparation)
